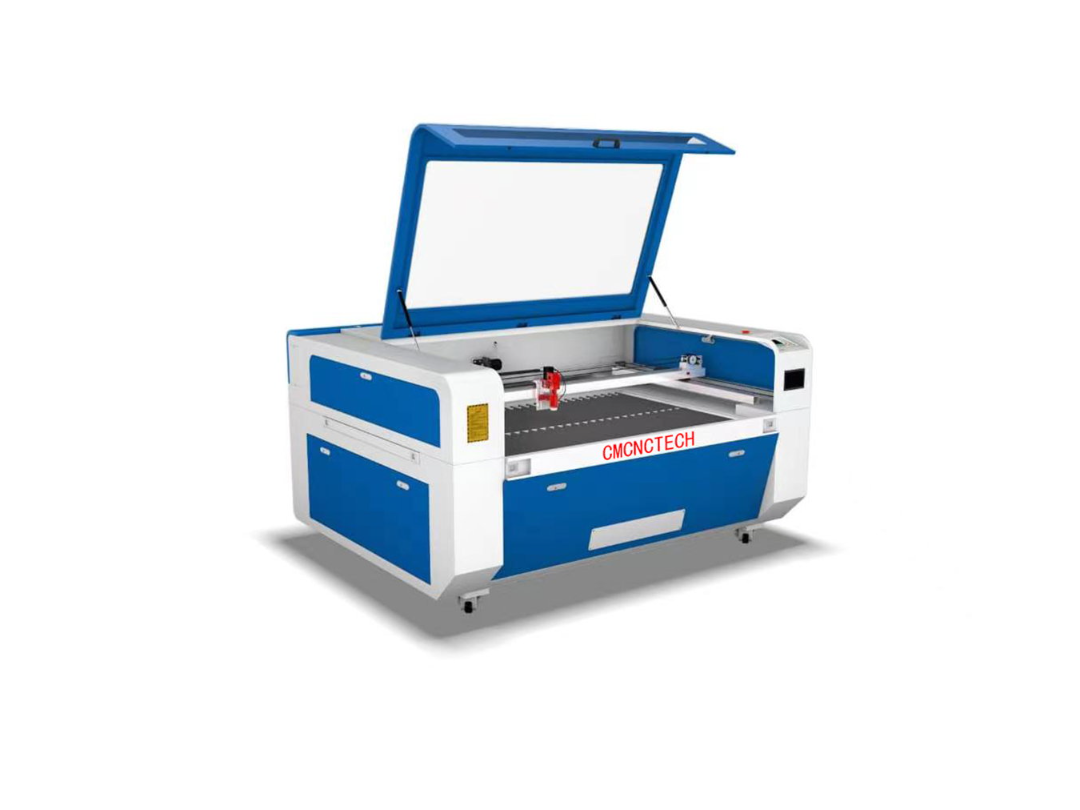

Co2 Laser Mixed Cutting Machine CM-1390M
Configuration Parameters：
| Model | CM-1390M |
| X,Y Working Area | 1300*900mm |
| Laser power | 100w 130w 150w 180w 220W 300W |
| Laser type | CO2 Laser |
| Color | white and blue |
| Reflector and focus mirrors | Imported |
| Linear rail | High quality Taiwan square rail |
| Table type | Blade working table |
| Cooling system | CW5200/CW6000 Water chiller |
| Other accessories | Exhaust fan,Air compressor,red dot etc all necessary |
| Engraving Speed | 0-60000mm/min |
| Cutting speed | 0-36000mm/min |
| Resetting position accuracy | ±0. 01mm |
| Control system | RD6332M control system with WIFI wireless control |
| Software | RDworks V8 |
| Graphic format supported | BMP, PLT, DST, DXF, AI, JPG, GIF, PGN, TIF |
| Software supported | CorelDraw, PhotoShop, AutoCAD, TAJIMA,Artcut |
| Laser Output | 1-100% Software Setting |
| Operating temperature | 0 - 45℃ |
| Operating humidity | 5 - 95% |
| Working Mode | 3-phase Stepper motor |
| Dichroic Cutting | Up to 256 colors |
| Gross power | <2200W |
| Minimum shaping character | English 1 x 1mm |
| Working Voltage | 220V/50HZ -60HZ; single phase ( 110v option) |
Product Description:
This Co2 laser cutting machine,Metal laser cutting machine is dedicated to cutting the processing of metal materials, laser cutting equipment, which co2 laser cutting machine to cutting ability, wide range of the market mainstream laser cutting equipment.
Configuration Parameters：
1) Ruida 6445G controller, the most popular control system for co2 laser engraving cutting machine
2) Front to rear design, suitable for large materials
3) Yongli Laser tube ( glable warranty 12 months,6000 hour work life-span ) or Reci laser tube optional ( 10000 hours work life-span
4) Electrical up and down blade work table, improve processing efficiency
5) 12 Months warranty + all life teach support + 16 hours online service .
6) Y-Axis double linear square guide rail + big power motor, small noise, fast speed, max is 700mm/s

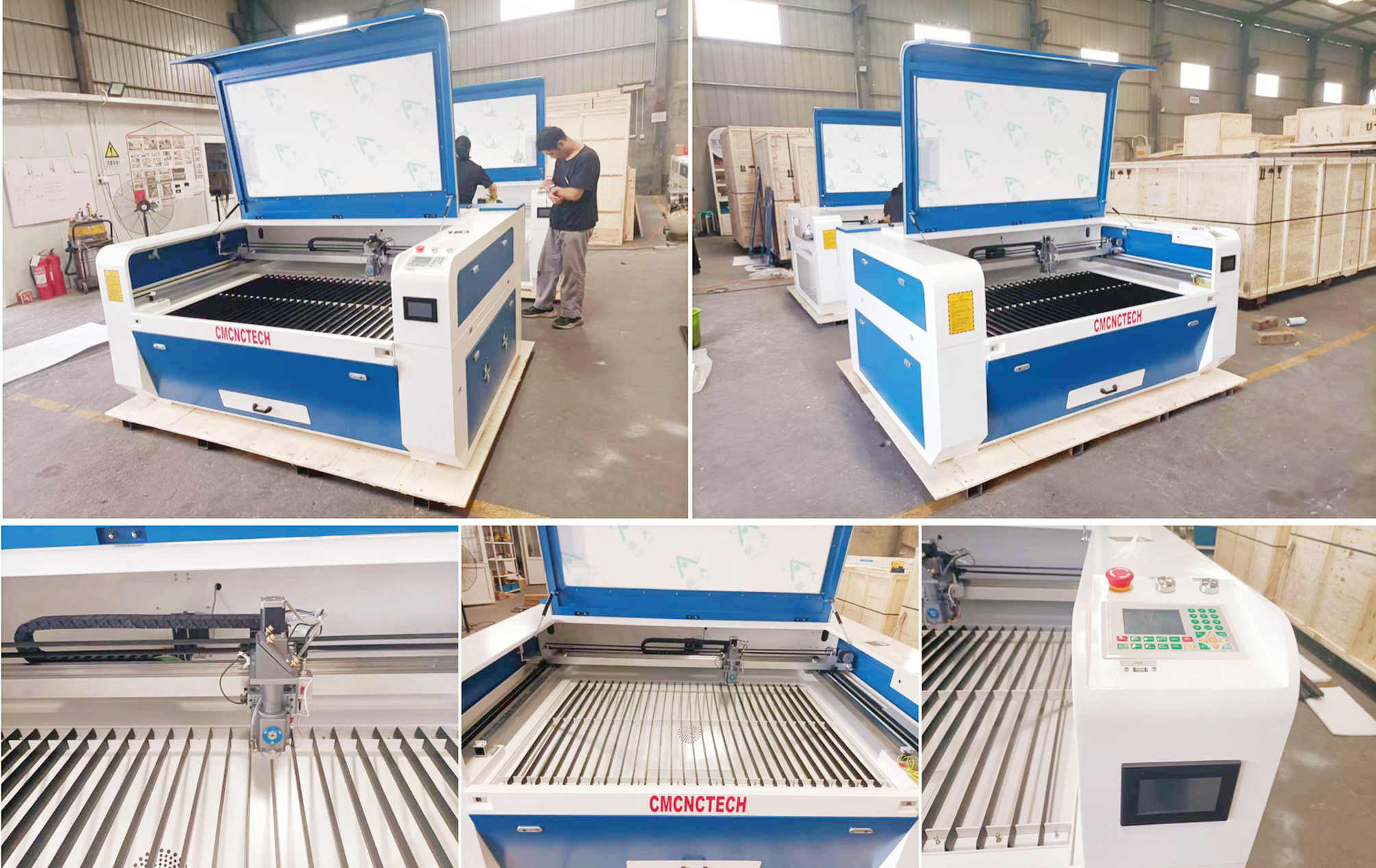

Machine Photos：

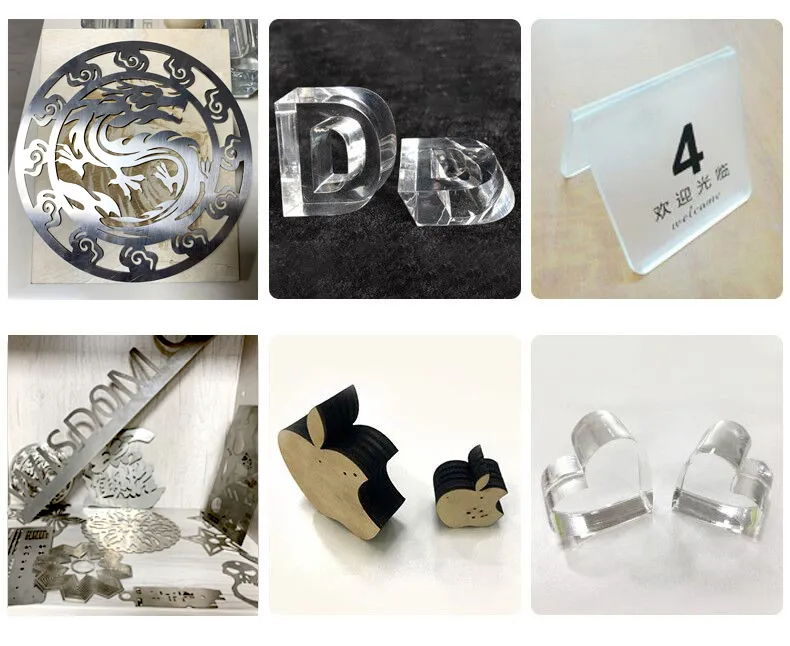

Applications and Samples:
This co2 series machine can cut and engrave acrylic,wood, plywood, mdf, double-layer sheet, cloth, leather, foam，etc non metal materials.At the same time, the machine has added a special system, connected with oxygen-assisted cutting, which can cut thinner stainless steel and carbon steel.The following samples are all produced by our machine.And It is popular in the industries of advertising signs, arts and crafts, architectural models, wine bottle customizing, toys, chothing, shoes, bags, etc.
