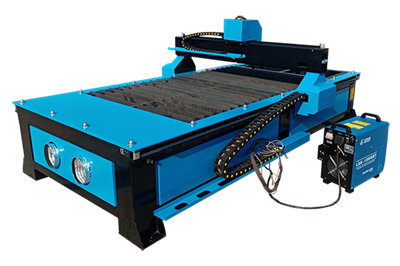

Table Plasma Cutting Machine
Configuration Parameters：
| Description | CM-TP1530 (Optional:CM-TP1212/CM-TP1325/CM-TP1560/CM-TP2030 /CM-TP2040/CM-TP2050/CM-TP2060) |
| Working Size | 1500*3000mm(Optional:1200*1200/1300*2500/1500*6000 2000*3000/2000*4000/2000*5000/2000*6000mm) |
| Z Axis Clearance | 150mm (200 And Higher Is Optional) |
| Table Type | Sawtooth table or Water Tray |
| Transmission System | Rack Pinion And Linear Rails For X/Y/Z |
| Driving System | Stepper Motor And Drivers |
| Max. Cutting Speed | 12000mm/Min |
| Max. Travelling Speed | 20000mm/Min |
| Working Voltage | 380V/3phase |
| Plasma Generator | Thermal Dynamics(USA) |
| Arc Mode | Non-Contact Arc, Arc Pressure Adjuster |
| Output Current | 63A/100A/120A/200A |
| Max. Cutting Thickness | 6/15/18/20/30mm |
| Operating System | Starfire Controller/Start Controller |
| Working Material | Steel, Aluminum, Galvanized Sheet, Titanium Plate, Platinum Plate |
Product Description:
Plasma cutting systems provide high cutting speeds and throughput, combined with a low cutting cost per mm. With the introduction of high-definition systems, secondary operations on processed parts are nearly or completely eliminated. Plasma cutting systems are efficient in processing electrically conductive materials of different thicknesses.

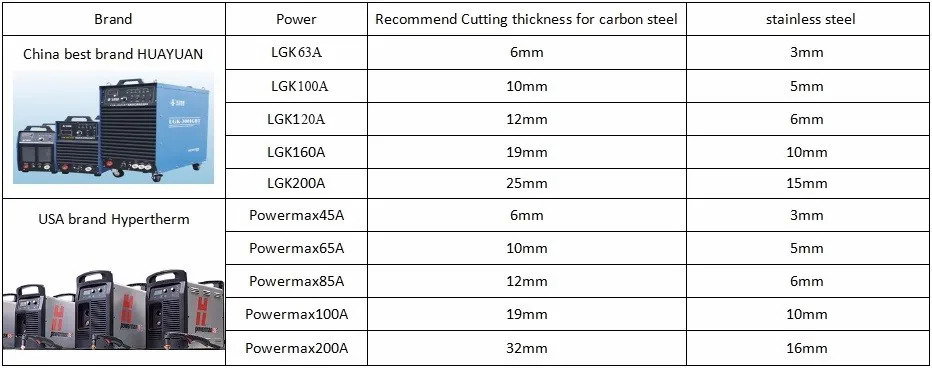

Cutting Ability:
Features:
1) Plasma cutting machine the beam uses light structural design,with good rigidity structure, light deadweight .
2) The gantry structure, Y axis used dual-motor dual-driven system,X,Y,Z axis all use dual-straight rail that make the machine driving smoothly with high-precision.
3) Aiming at cutting three dimension LED character, trough metal panels and floor cutting, the accuracy can reach good indicators.
4)It can apply to iron shee the aluminium sheet, the galvanized sheet, hundred steel plates, metal plates and so on.
5) The numerical control system disposes high, the automatic striking arc, the performance is stable.
6) Support Wentai, Astronautics Haire, ARTCAM softwares, Type3 produce standard G code way document,also can change software to read AUTOCAD softwares produce DXF form documents.
Product Advantages:
| 1.Heavy-duty body,Multi-column support,Structural distribution of mechanical science |  |
 | 2.Equipped with professional pipe smoking system |
| 3.Use 1.25mm rack and gear.Rack transmission, Higher precision |  |
 | 4.High flexibility wireStrong output signal,strong anti-interference ability |
| 5.The machine delivers a 16G USB flash driveWith detailed operation video tutorials included |  |

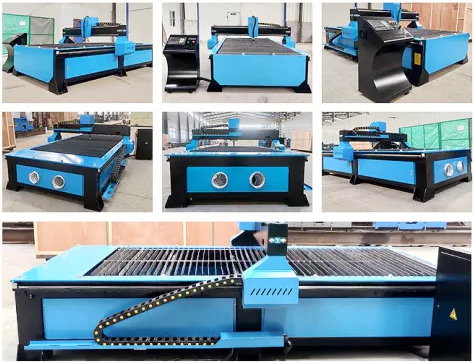

Machine Photos:

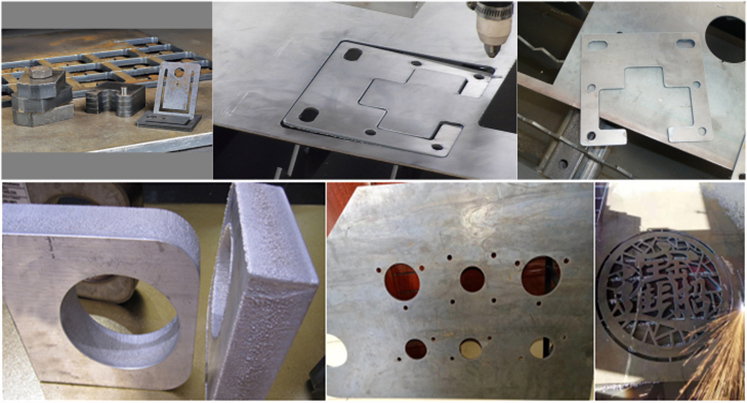

Samples:

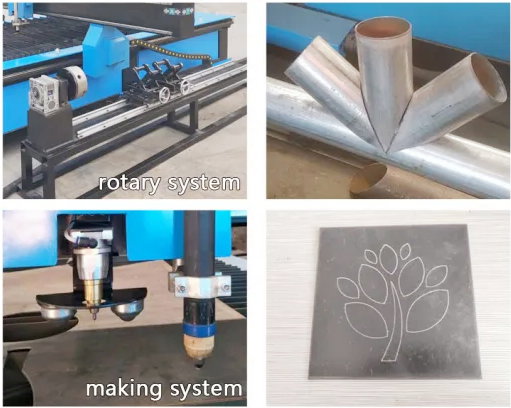

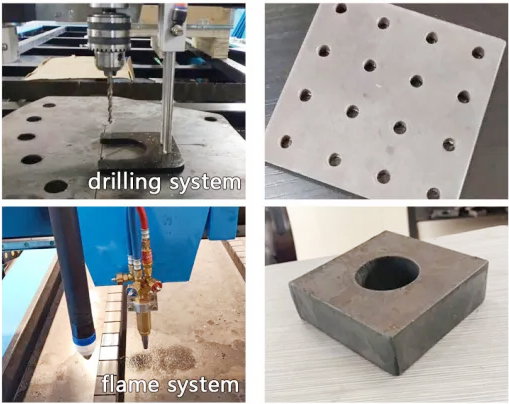

Upgrades And Optional Configurations:
