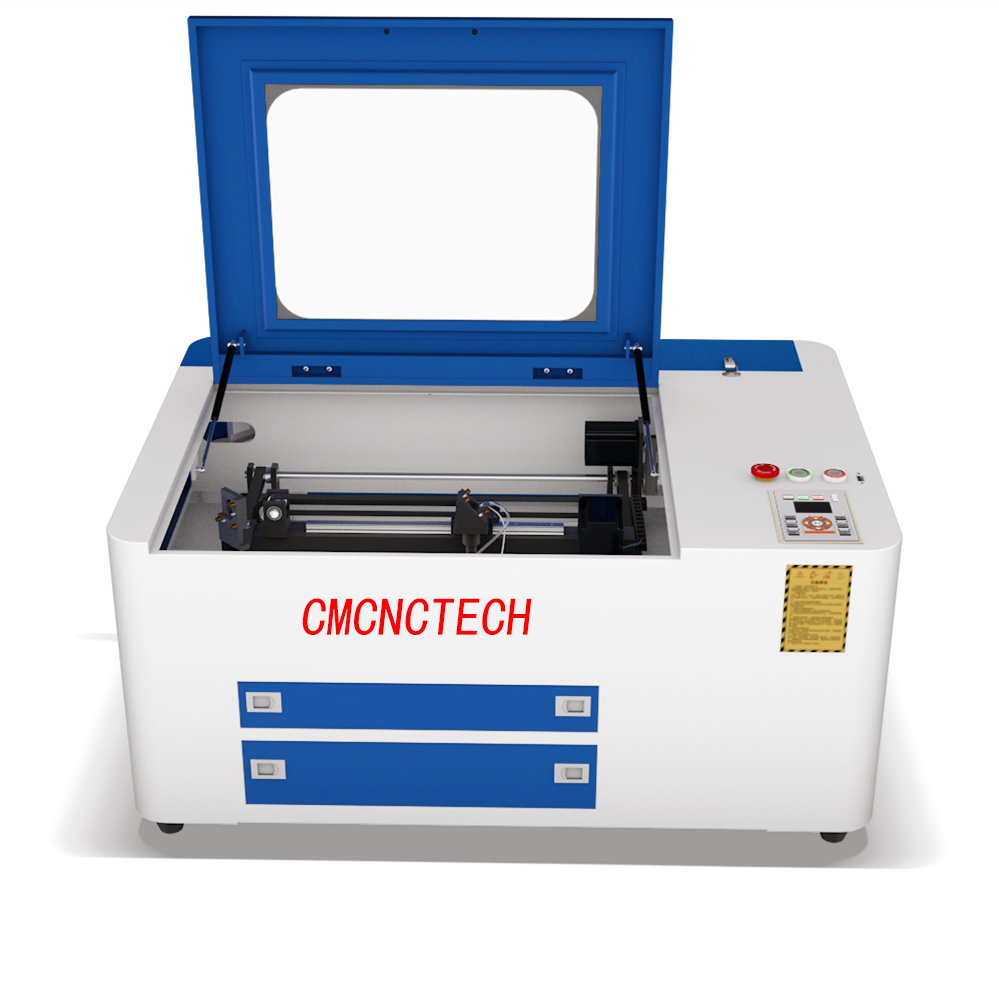

4030 / 6040 CO2 Laser Machine
Configuration Parameters：
| Laser Power | 40W/50W/60W/80W |
| Working Size | 400mm*300mm/600mm*400mm |
| Working Plateform | Honeycomb/blade |
| Processing Speed | According to material requirements |
| Repeat positioning accuracy | ±0.01mm |
| Shaped Text | Chinese characters 2.0*2.0mm English 1.0*1.0mm |
| Control System | 0-100% stepless control, 0-100% adjustable in software |
| Cooling System | Water circulation pump |
| Power Requirement | 220V/110V, 50Hz/60Hz |
| File Format | plt, dxf, dst, ai, bmp, dwg output by Coreldraw or CAD |
Product Description:
This machine can engrave and cut all kinds of non-metal, acrylic, MDF, cloth, leather, wood products, plexiglass, plastic, ceramic tile, marble, paper, rubber and other non-metal materials. It is widely used in craft gifts, paper cutting, advertising signs, clothing, furniture and other industries.
Features:
1. Professional desktop design concept, beautiful appearance and small footprint;
2. Adopt DSP control system, fast speed, simple operation, high-speed engraving;
3. The beam structure is made of high-strength aluminum alloy, which has the advantages of light weight, small resonance and smoother operation compared with traditional steel frame beams;
4. For the processing of different products, the position of the prevention platform can be selected;
5. It can be engraved at high speed, which greatly improves the processing efficiency.

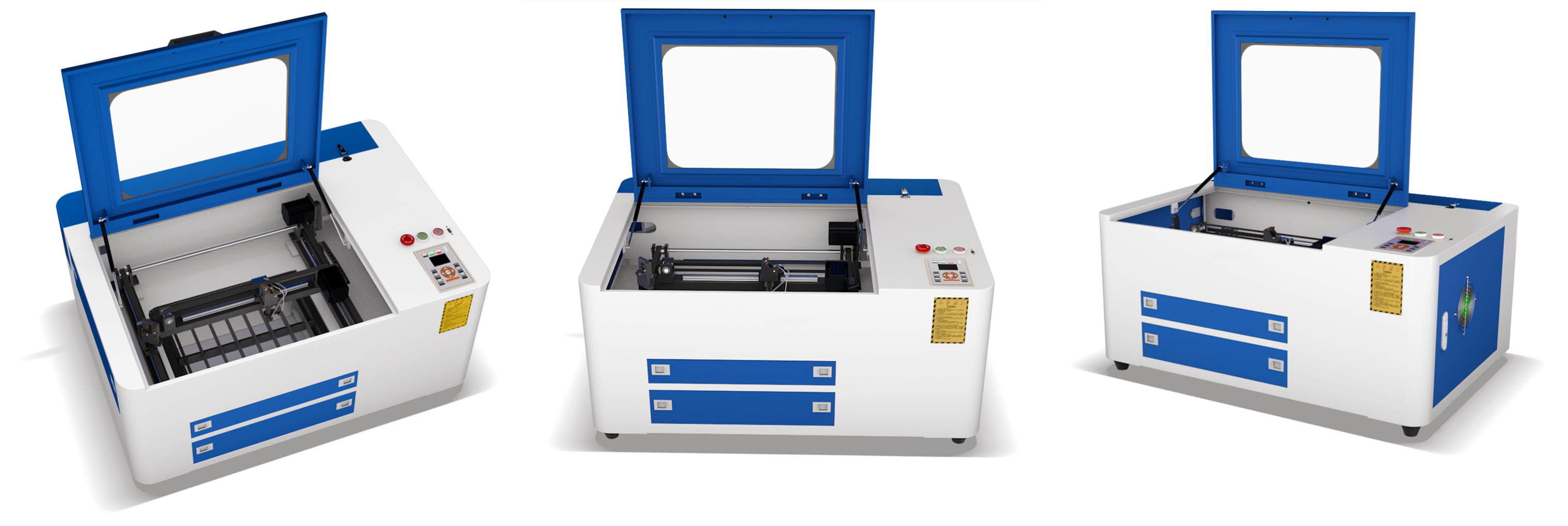

Machine Photos:
Applications and Samples:
