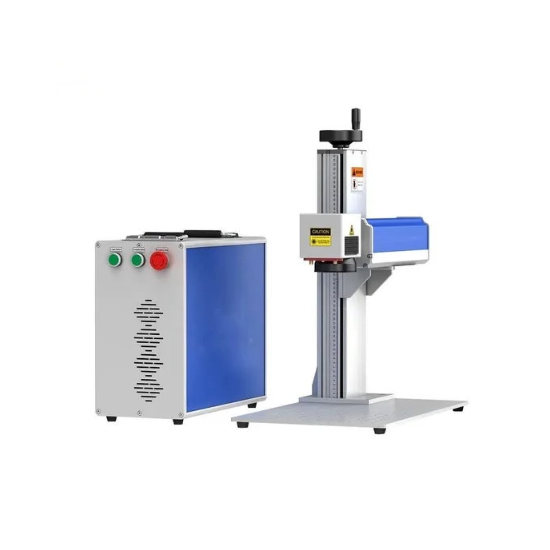

FIBER LASER MARKING MACHINE CM-LM

FIBER LASER MARKING MACHINE CM-LM

Configuration Parameters：

Model NO.CM-LM
Applicable MaterialMetal
Laser ClassificationFree Electron Laser
Marking MethodScanning Marking
Laser HeadSino-Galvo Head
Marking Scope100*100mm
Marking Speed7000mm/S
Frequency1-4000 kHz
Power Supply220V 50/60Hz
Gross Weight50kgs
Control SoftwareEzcad Software
Transport PackageStandard Packaging or Customized
Production Capacity1000sets/Year
Laser VisibilityVisible
Cooling SystemAir Cooling
Laser WavelengthFiber Laser
TypeOptical Fiber Laser Marking Machine
Product Namelaser Marking Machine
Laser SourceRaycus Max JPT
Gross Power<0.8kw
Laser Power20W/30W/50W/60W/100W
Pulse Width2-500ns
Package SizeLess than 1CBM
Process MaterialMetal and Some Non-Metal
Graphic Format SupportedAi, BMP, Dst, Dwg, Dxf, Dxp
SpecificationStandard Specifications or Customized

Product Description:

Laser engraving machines are advanced tools that employ a focused laser beam to etch precise and intricatedesigns onto a wide array of materials, including wood, glass, metal, and plastic etc. They solve the problemof creating high-resolution durable, and detailed markings that are challenging to achieve with traditional engraving tools.

Configuration Parameters：

1. Wide material compatibility

Ideal for precise marking on metals and non-metals, especially detailed work.

2. High-precision marking on all metal surfaces

Marks time, date, text, serial & part numbers, logos, icons, barcodes, QR codes, 2D codes, fonts on:

Plain metal

Painted metal

Powder-coated surfaces

Anodized aluminum

Electroplated metalsSuitable for flat, curved, and cylindrical objects.

3. Perfect for tumblers, cups & bottles.

Used for engraving and marking on drinkware:

Painted tumblers

Powder-coated cups

Bare stainless steel bottles

Metal mugs and flasks

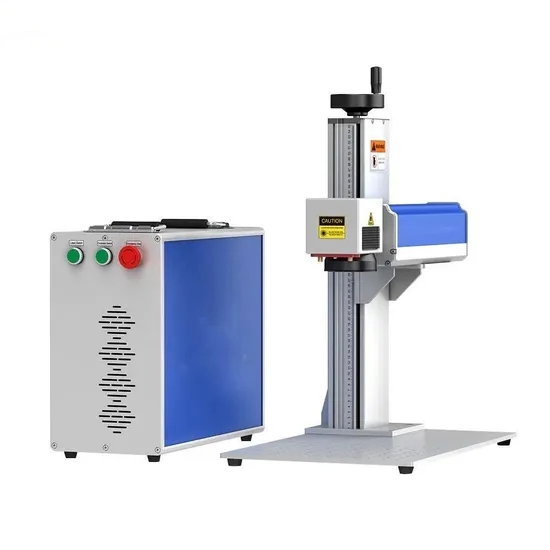

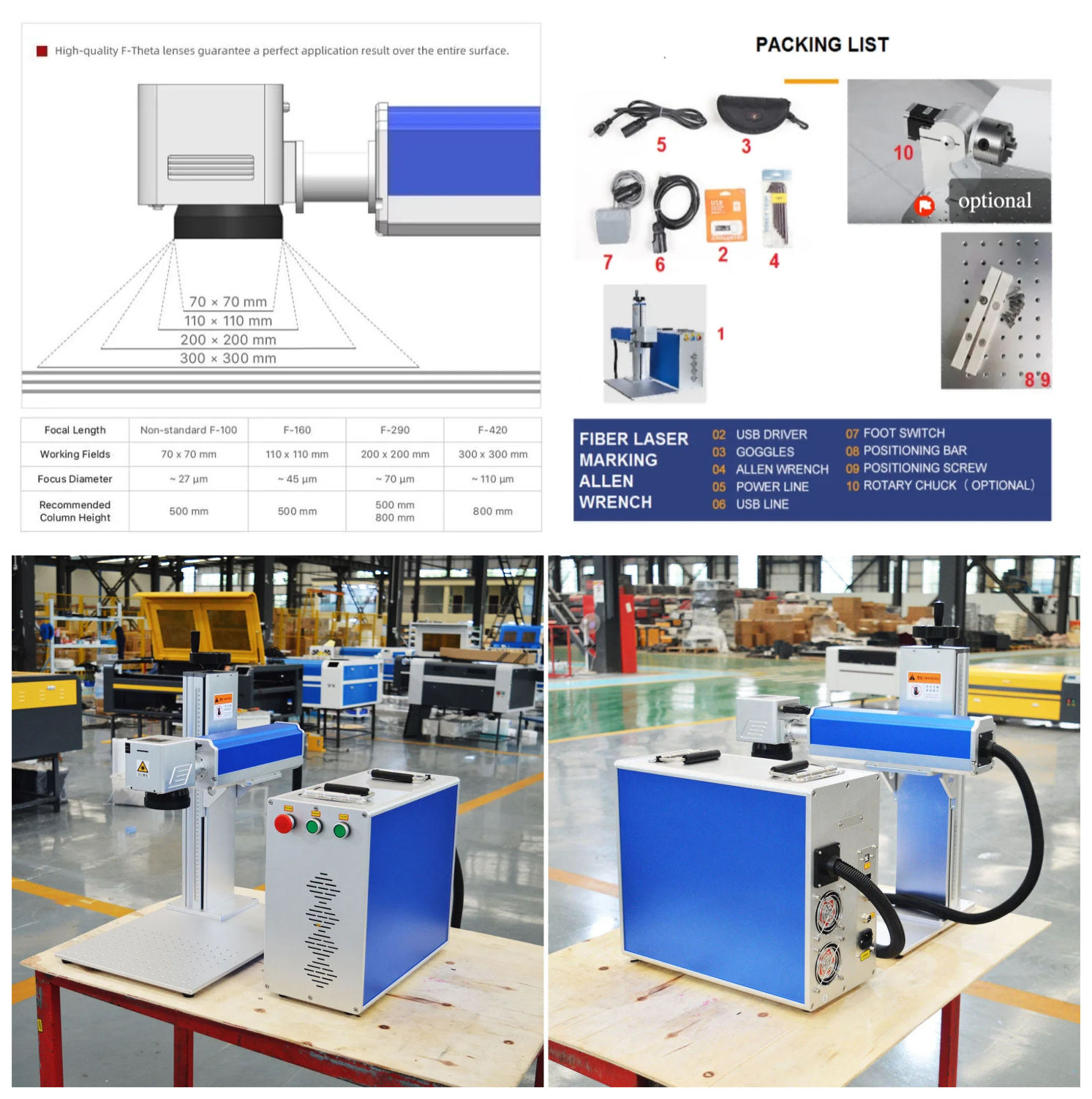

Machine Photos：

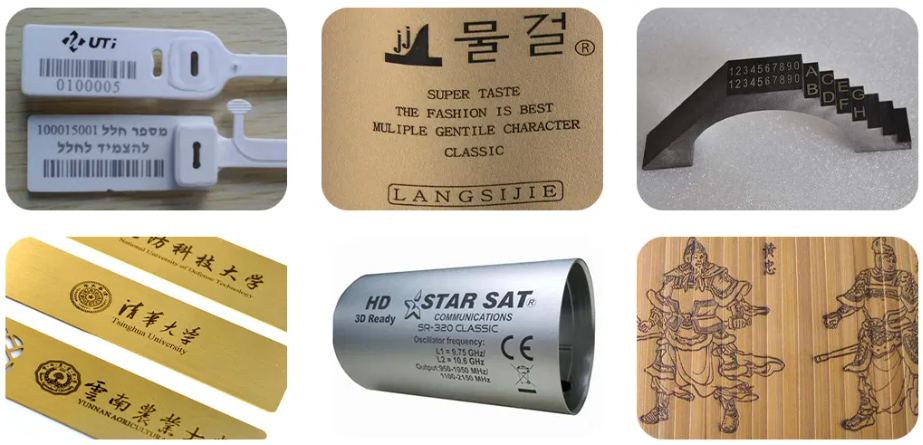

Applications and Samples:

These machines are widely used in various sectors, including the gift industry for personalized items, thepromotional products industry for branding, the arts and crafts industry for detailed artistic work, and inindustrial applications for part identification and traceability. They are also prevalent in the customization ofpersonal electronics, medical devices, and automotive components.
