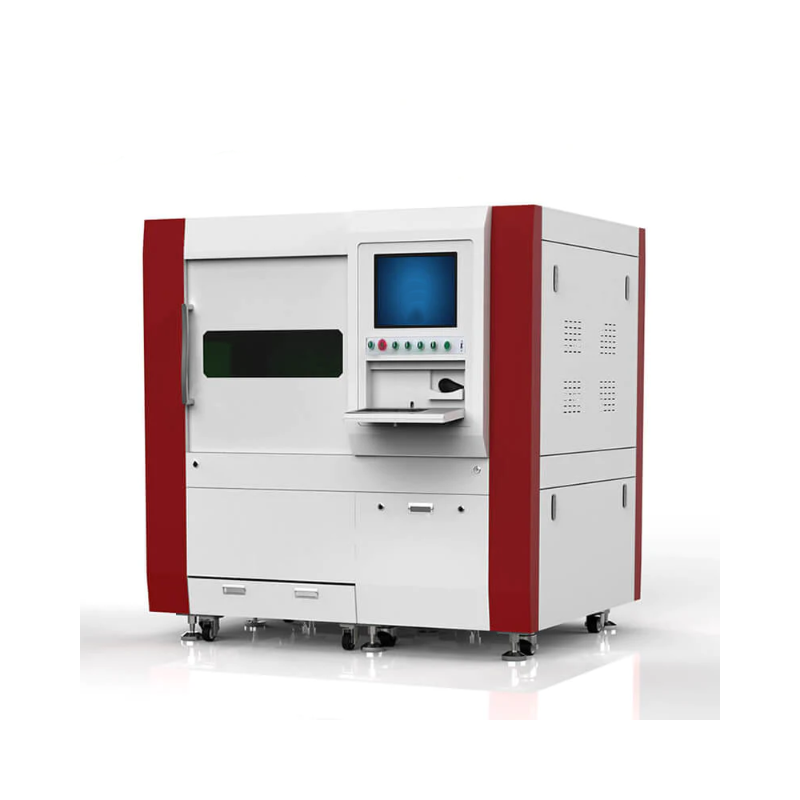

CM-P6040 Precision Laser Cutting Machine
Configuration Parameters：
| Laser source wavelength | CM-P6040 |
| Output power rate of the Laser source | 1070nm |
| Effective cutting area | 600mm*600mm |
| Cutting thickness (depend on Laser source power) | Carbon ≤8mm；Stainless Steel ≤4mm;Aluminum Alloy ≤2mm; Copper ≤2mm; |
| Positioning accuracy | ≤±0.03mm |
| Repeated position accuracy | ≤±0.02mm |
| Max speed of X-axis | ≤20m/min |
| Max speed of Y-axis | ≤20m/min |
| Max speed of Z-axis | ≤17m/min |
| Synthesis speed | ≤20m/min |
| Max accelerated speed | 0.3G |
| Bearing weight | 300KG |
| Electric demand | AC220V±5%50Hz |
| Total Power consumption | 6KW-25KW |
| Dimension | 1880*1450*2100(mm) |
| Machine weight | About 1200KG |
| Support Graphical format | DXF |
Product Description:
This fiber laser cutting uses a high-power density laser beam to quickly heat the material to vaporization temperature and evaporate to form a hole, move the beam to form a slit, so that realize the materials cutting . based on this ,The small area high precision cutting machine also achieves high-precision cutting, no tool wear, low heat impact, fast speed, automatic positioning, automatic correction and other functions.
Configuration Parameters：
---Pre-Sales Service
① Free pre-sales 7*24 hours rapid response services / cousulting
② Free sample testing / inspection
③ Free design of fixtures as customers / distributor required
④ Strict quality control for our products
⑤ Quick delivery time
---After-sales Services
① 2 year guarantee for laser source(people damaged are charged)
② Full technical support / by e-mail, call and video
③ Spare parts supply.
④ Free online training installation and operation
⑤ 12 hours quick feedback & after-sales services
⑥ ODM/OEM service
